Understanding Plasma Technology
Powermax systems cut metal quickly, and cleanly
Plasma, and its intense heat (up to 22,000C), is created when gas is ionized by electrical energy. Powermax systems use plasma to melt metal, and compressed air or nitrogen to blow the molten metal away, leaving a good quality cut edge ready to weld in most cases. Powermax systems are also effective for gouging metal.
Cut or gouge any electrically conductive metal
Whether in a shop, factory, at home or in the field, Powermax systems cut and gouge all metal types and forms. Most models are available with a handheld or machine torch to fit the application.
Operating a plasma system requires
·AC power source (fixed or generator)
·Compressed air - shop air, portable air compressor or bottled air. Nitrogen is often used for stainless steel.
·Safety equipment, including shaded glasses or face shield, gloves, protective clothing and proper ventilation.
For those who cut anything but corners.
From spark to finish, no other brand can cut it against a Powermax® air plasma system. That's because we continuously devote more resources to plasma cutting engineering than any other company. It's how we've remained on the cutting edge of technology for 45 years. You see, we know you're not just buying a tool, you're making an investment in yourself.
Outperforms
High portability, simple controls and a stable plasma arc make Powermax systems easy to operate for beginners and experts.
State-of-the-art consumable technology delivers faster speeds and better cut quality to help you do more in less time.
Long consumable life, combined with fast cut speeds, lower your costs of cutting and gouging.
Outcuts
With the largest variety of plasma torches on the market, and amperages ranging from 30 to 125 amps, you can tackle any metal cutting or gouging job. And cut speeds that are faster than oxyfuel on metals up to 1-1/2" ensure you'll get the job done on time.
Outlasts
Smart design plus intense testing during product development and manufacturing keeps you up and running.
With Hypertherm's focus on plasma by our associate-owners, and the proven performance of our global installed base of systems, you'll have the confidence that you are buying the best.

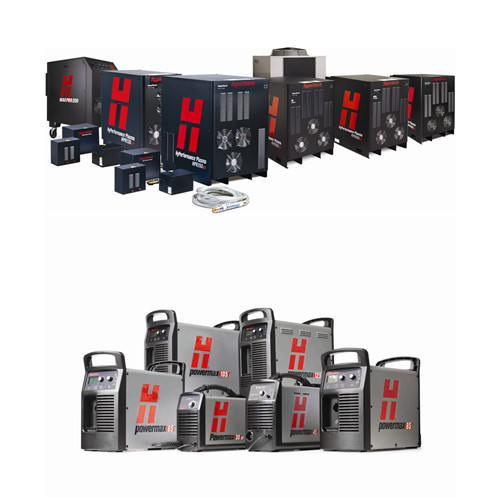

MODEL NO.
|
MAX. AMPERAGE
|
VOLTAGE
|
POWER
|
DUTY CYCLE
|
QUALITY PIERCING CAPACITY MS/SS/ALUMINUM
|
PIERCING CAPACITY MS/SS/ALUMINUM
|
EDGE START CAPACITY MS/SS/ALUMINUM
|
|
HPR800XD
|
800A
|
OPTIONAL
|
160KW
|
100%
|
≤ 38/ 75/ 75mm
|
≤50 / 100/ -mm
|
≤80 / 160/ 160mm
|
|
HPR400XD
|
400A
|
80KW
|
100%
|
≤ 38/ 45/ 45mm
|
≤50 / 75/ -mm
|
≤ 80/ 80/ 80mm
|
|
HPR260XD
|
260A
|
45.5KW
|
100%
|
≤ 32/ 32/ 25mm
|
≤38 / -/ -mm
|
≤64 / 50/ 50mm
|
|
HPR130XD
|
130A
|
19.5KW
|
100%
|
≤16/ 20/ 20mm
|
≤32/ -/ -mm
|
≤38/ 25/ 25mm
|
|
MaxPro 200
|
200A
|
33KW
|
100%
|
≤ 20/ 25/ 32mm
|
≤32 / -/ -mm
|
≤75 / 64/ 75mm
|
|
Powermax 125
|
125
|
380V ±10% 3 phase
|
21.9KW
|
100%
|
≤25mm
|
≤25mm
|
≤57mm
|
|
|
Powermax 105
|
105A
|
380V ±10% 3 phase
|
16.8KW
|
80%
|
≤22mm
|
≤22mm
|
≤50mm
|
|
|
200-600V 3 phase
|
|
|
Powermax 85
|
85A
|
400V ±10% 3 phase
|
12.2KW
|
60%
|
≤20mm
|
≤20mm
|
≤38mm
|
|
|
200-600V 3 phase
|
|
|
Powermax 65
|
65A
|
400V ±10% 3 phase
|
8.4KW
|
50%
|
≤16mm
|
≤16mm
|
≤32mm
|
|
|
200-600V 3 phase
|
|
|
Powermax 45
|
45A
|
400V ±10% 3 phase
|
5.9KW
|
50%
|
≤12mm
|
≤12mm
|
≤25mm
|
|
|
200-600V 3 phase
|
|
|
